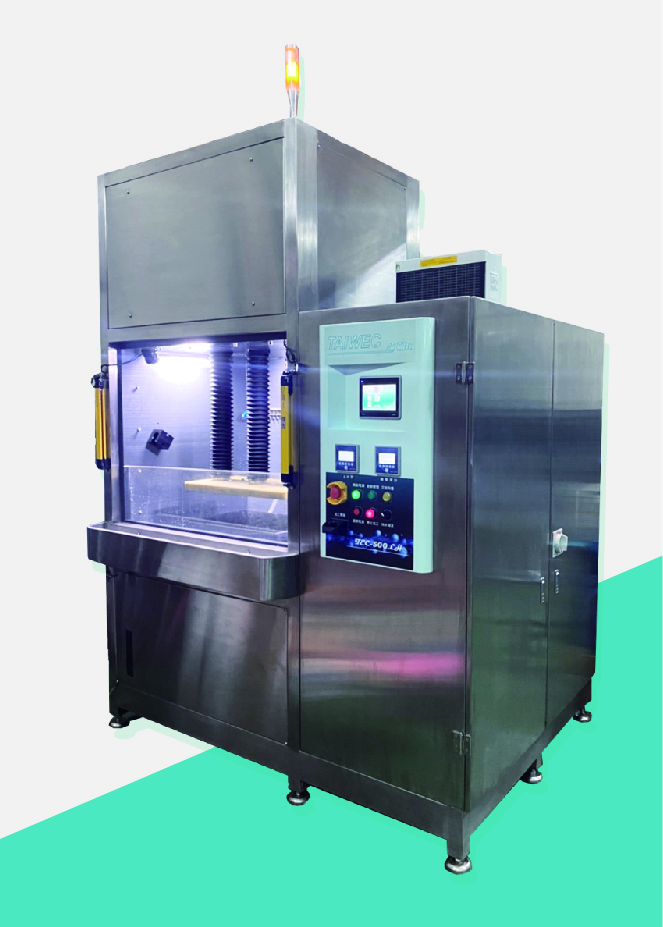

TEC-500 ELECTROCHEMICAL MACHINE

service：warranty、Customized electrode/clamping、Electrolyte recovery

Features

Suitable for various mass production

Any metal material processing
No loss of electrode (tool)
No residual stress on the workpiece
high productivity
No burrs after processing
High processing reproducibility
Suitable for large parts removal products

Downloads

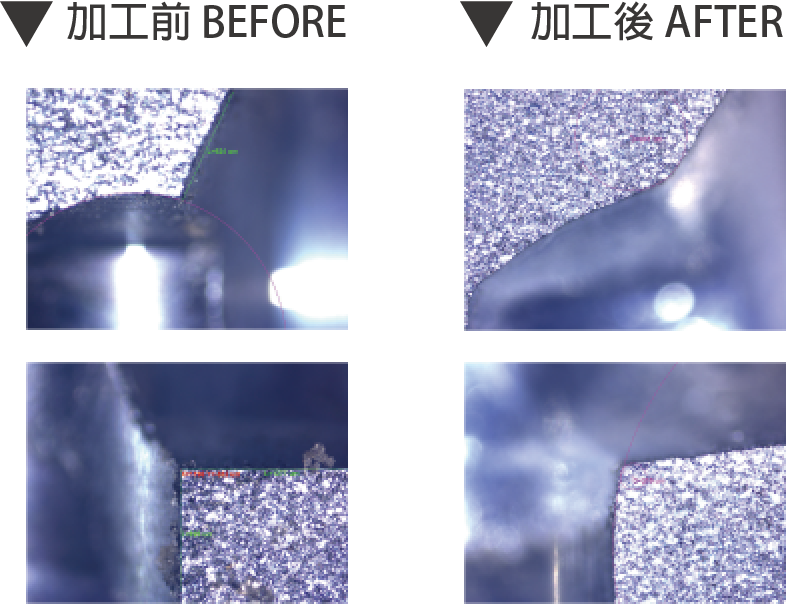

ECM DEBURRING

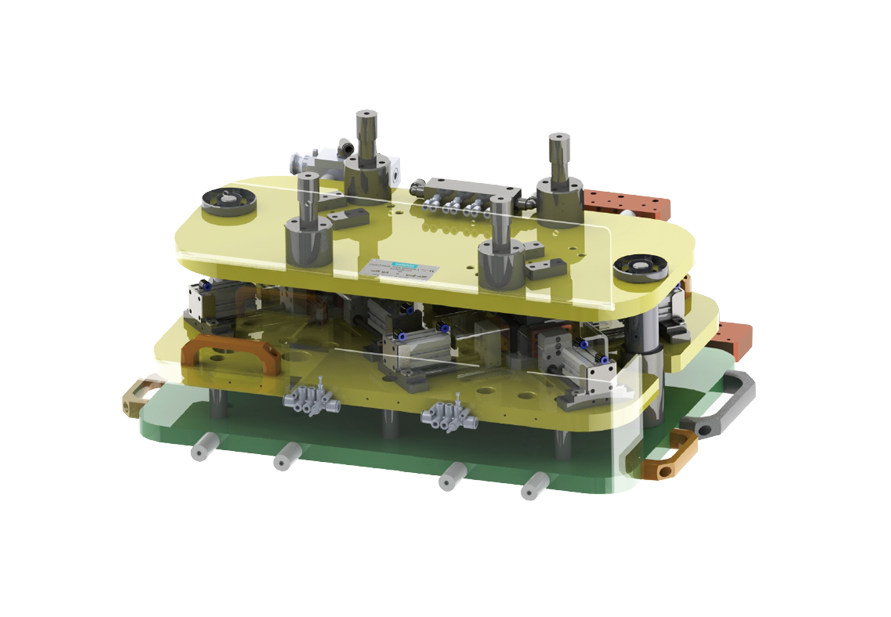

Multi-cavity mold
Time：90s
Material：AL6061
One-mold two-cavity design, compared with manual deburring
ECM deburring capacity is at least 10 times higher.

TEC-500 OPTIONAL ACC

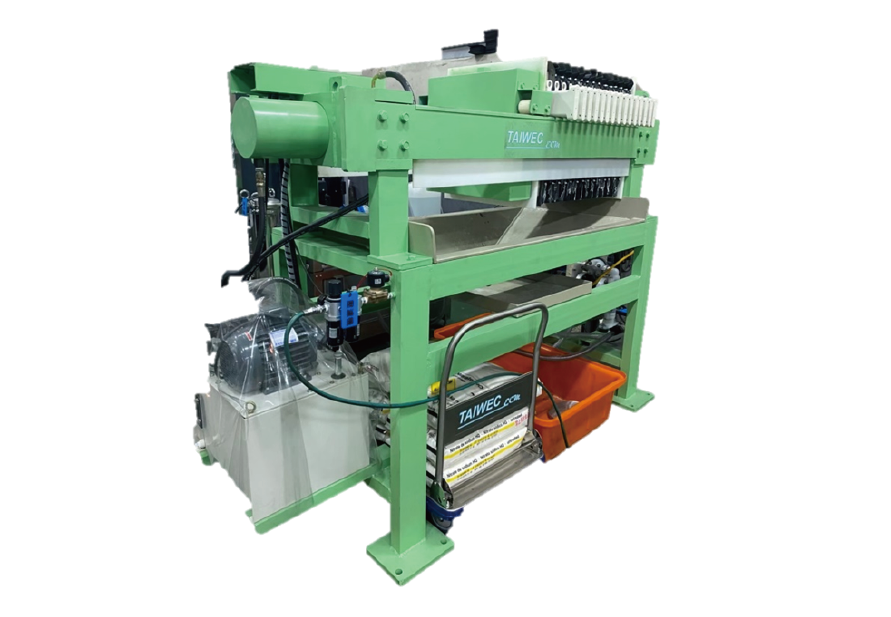

TEC-500 Filter press

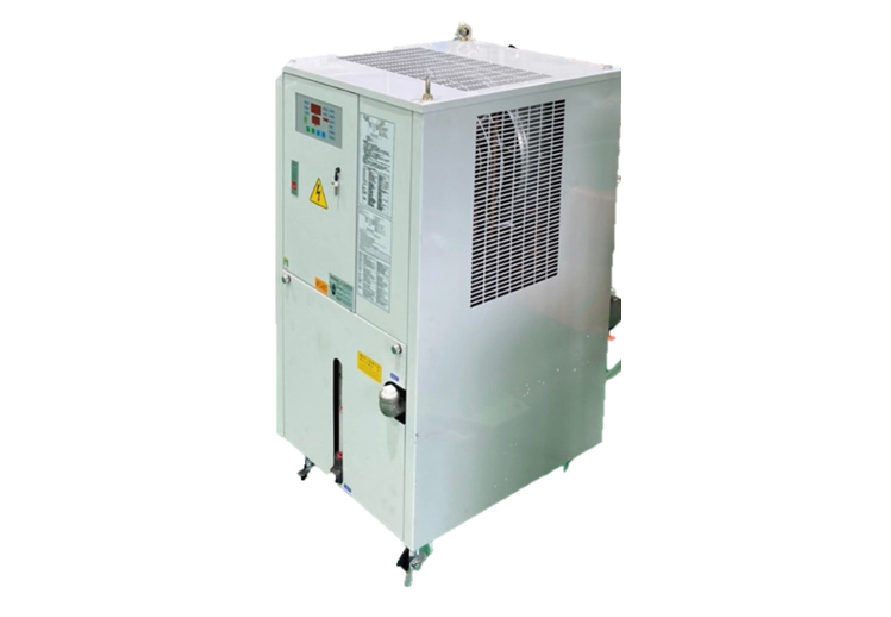

TEC-500 Water chiller unit

TEC-500 Customized electrode / clamping

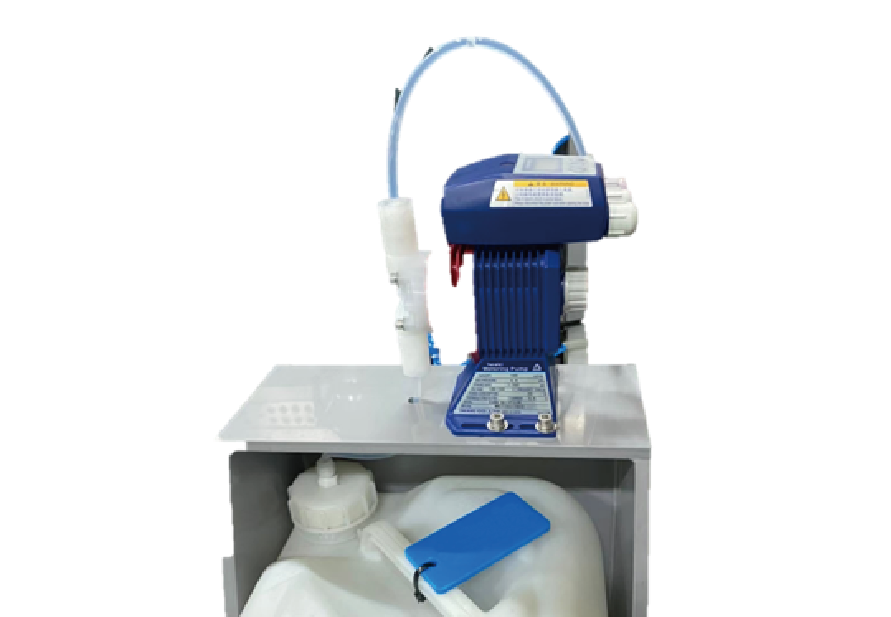

TEC-500 acid-base balance dosing machine

MACHINE SPEC. & ACC.

Stand acc：

Lamp x1
Tool Box x1
Tubes x2
Filter x1

Optional acc：

Customized electrode / clamping
Customized electrolyte
Customized power
Filter press
Water chiller unit
XY Axes

		TEC-500

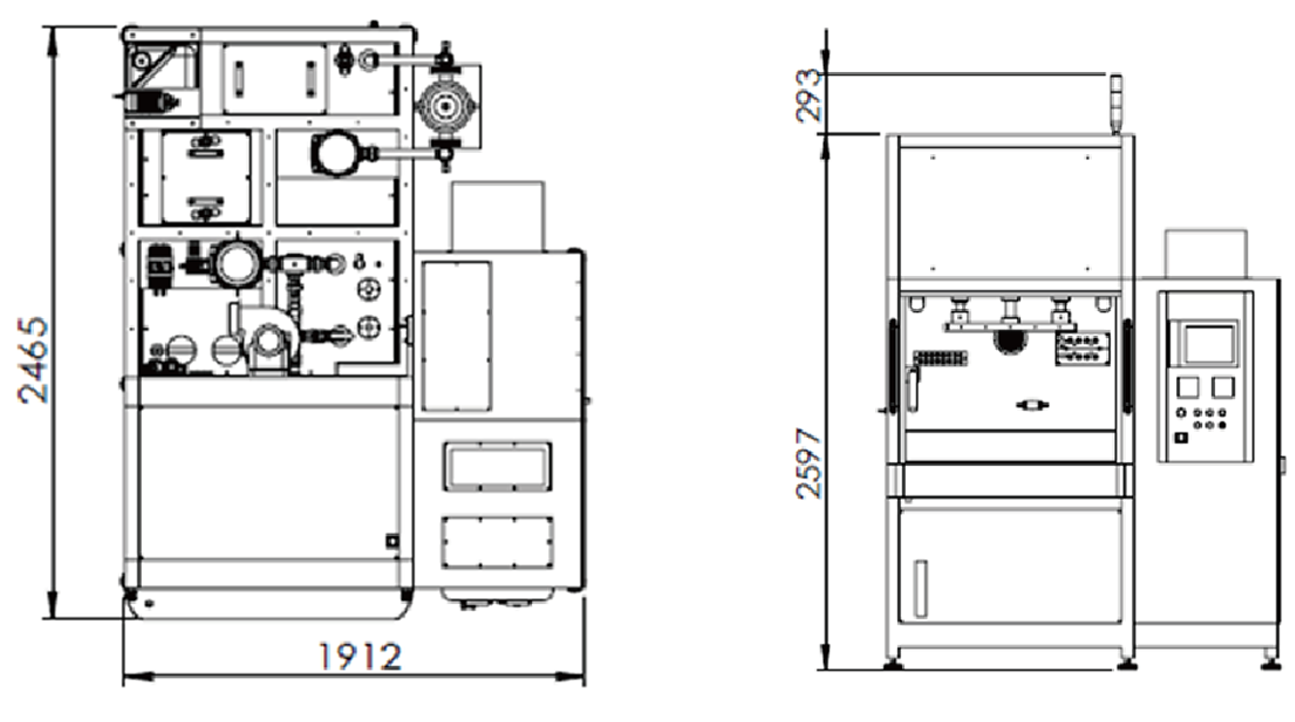

Spec.		Machine layout
	W	1154mm
	L	1229mm
	H	2251mm
		Working table
	L	300mm
	W	300mm
		Machining area
	W	400mm
	L	400mm
	H	450mm
		Axes travels
	X	90mm
	Y	90mm
	Z	130mm
	Weight(without electrolyte)	≒500kg (400kg)
Filtration		Filtration tank
	Capacity	100L
	Filter press	NA
	Filter	2pcs
Power		Output power
	Voltage	0~20V
	Currency	0~100A
	Pulse frequency	500 Hz
	on time	1ms
	off time	1ms
	Pulse periode	1ms to DC
	Output mode	Constant voltage & current
Input		Input power
	Voltage	3AC 220V(3AC 380V)
	Current	20A
	Frequency	60Hz
Electrode/Clamping	trial mold	Extra charge
Electrode/Clamping	official mold	Extra charge
Electrolyte	Type
Electrolyte	composition	Customized
Description	Appropriate energy and excellent precision control, suitable for any small metal parts. The amount of workpiece removal is small, equipped with pulse power, suitable for small area finishing.

The spec. above might be changed without further notifications since TAIWEC co. approves spec constantly. Please contact the sales dep. for the details of machines.
